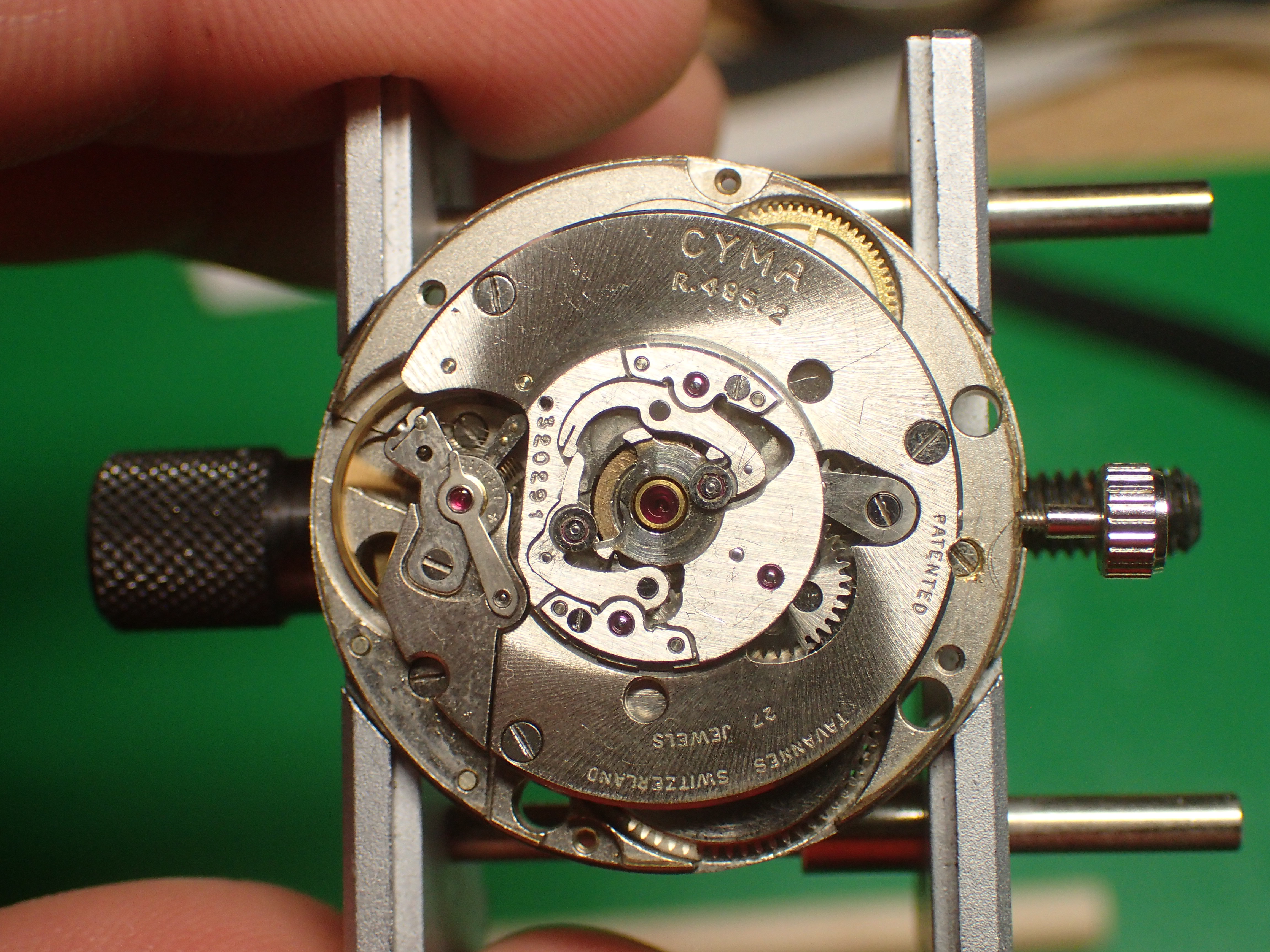

Cyma 485.2
Mechanical
c. 1940
Self-winding (rotor)
Date
Notes
1960- (R.485: 1953-) excenter regulator for stud carrier patented double-excenter winding with jewelled rollers (for low height) jewel-bearing rotor An intermediate wheel between minute pinion and the rest of the train allows big balance and low profile without reducing the sturdiness (cf. Cyma 10 Pleiade). Moreover this layout allows to place the seconds wheel either in the center or for a sub second, without further modifications (details cf. Cyma 488.2).
Dimensions
| Width | 28 lignes (63.16 mm) |
|---|---|
| Height | 5.7 mm |
| Stem height | 1.9 mm |
| Hands (H × M × S) | 1.3 × 0.85 × 0.22 mm |
Technical data
| Beat rate | 18,000 vph (2.5 Hz) |
|---|---|
| Lift angle | — |
| Power reserve | 42 h |
| Jewels | — |
| Shock protection | — |
| Mobile stud carrier | No |
Complications
| Self winding | Rotor |
|---|---|

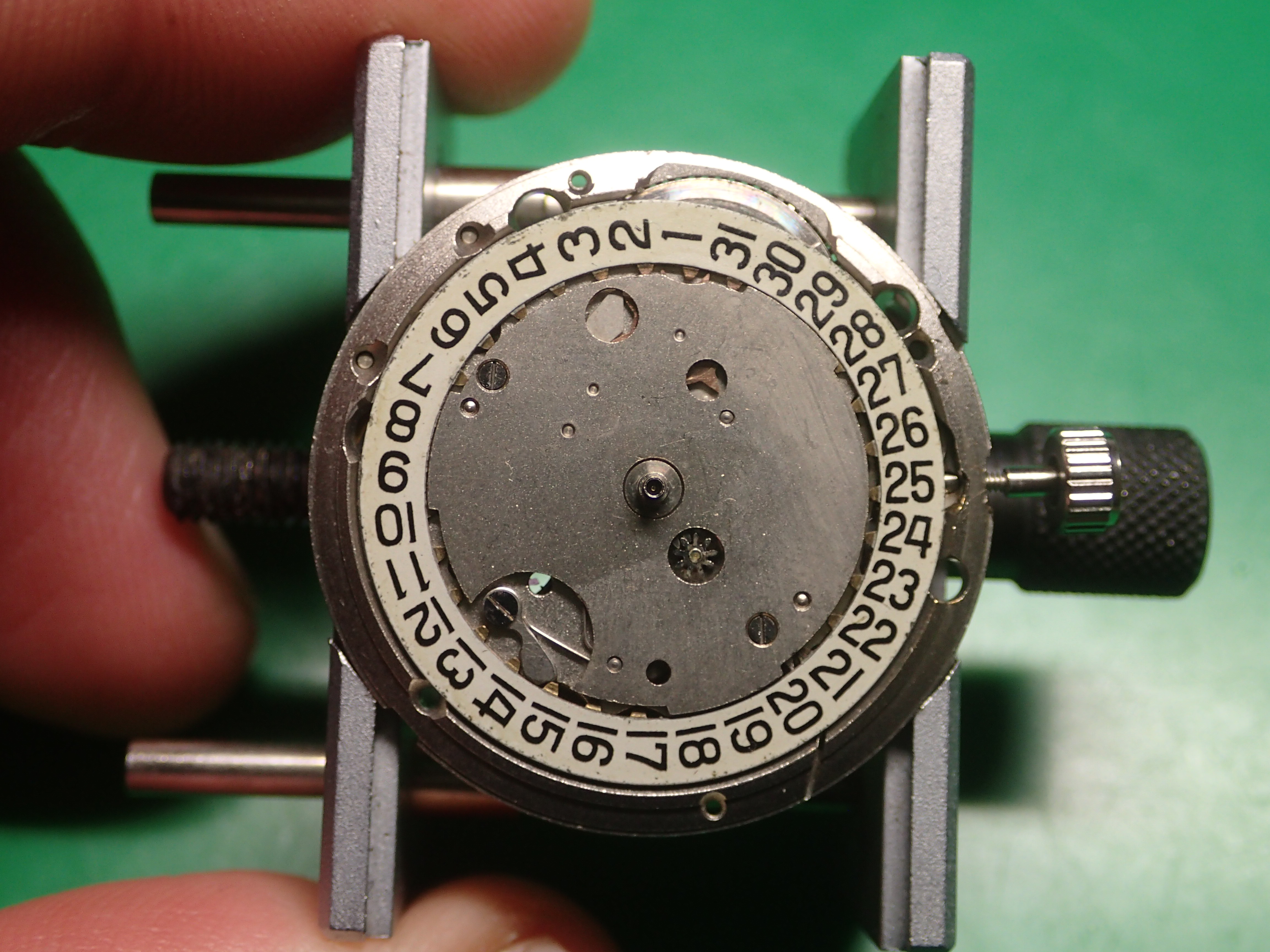

| Date | Yes |
| Day | No |
| Hacking | No |
| Chronograph | No |
Mainspring
| GR code | — |
|---|---|
| Height | 10.5 mm |
| Thickness | 0.11 mm |
| Length | — |
| Barrel diameter | 1.4 mm |
